BatteryChargeManager

BatteryChargeManager is a small tool to set charging thresholds for LenovoTM ThinkpadTM notebooks. This can significantly extend the overall battery lifetime.




When a laptop is mainly used with a power supply, the battery is always fully charged. This reduces the overall battery lifetime, as charging takes place at high current levels when reached a charge level of approximately 85%, and the battery warms up. By setting an upper charging threshold, charging is stopped when this threshold is exceeded.

In addition, batteries that are rarely used, e.g. because the laptop is usually operated with a power supply, have a longer overall lifetime if they are not fully charged. The optimum charge level is about 50%. By setting a lower charging threshold, charging is only started when the charge level falls below this threshold.

The charging thresholds are also effective when the laptop is switched off, as they are stored in the battery's firmware.
Individual charging thresholds can be set for each battery.





The factory setting is 100% for the upper charging threshold and 96% for the lower one. This allows maximum battery life without power supply, but reduces battery capacity in the long term. The recommended settings depend on the specific use:

  • Laptop normally plugged in (mains operation): upper charging threshold 50% to 55%.
  • Laptop more often without power supply (battery operation): upper charging threshold 70% to 85% (depending on required running time)
  • Good practice is to set the lower charging threshold 5% to 10% below the upper charging threshold.
    If battery life time without power supply is not important for you then 40% is a good lower charging threshold.
    The difference between upper and lower charging threshold must be at least 4%.
Every 2 to 3 months the battery should be charged to 100%, then discharged to approx. 3% and then recharged to 100% again in order to achieve a correct determining of the state of charge (recalibration).


  There are some prerequisites (read carefully):
  1. You should be running WindowsTM 7 or newer (Windows 10, 8.1, 8, 7, 32 or 64 bit each).
    Running Linux, charging thresholds can be set using TLP: linrunner.de/en/tlp/docs/tlp-linux-advanced-power-management.html.

  2. It only works with Lenovo Thinkpad notebooks - other notebooks (e.g. IdeapadTM) can't control charging thresholds.

  3. You have to install some software from LenovoTM (drivers for communicating with the battery):
    Lenovo Power Management Driver     download mirror:  [32-bit]  [64-bit]   [readme.txt]
    ThinkPad Settings Dependency download mirror:  [32-bit, 64-bit] [readme.txt]

    Restart is required after installation.

  4. In order to get new settings working, you have to disconnect the power supply, restart Windows and wait for the charging level to fall under the low charging threshold you have been setting.

  5. Still not working? Try to install Lenovo System Interface Foundation (recommended only if not working).
    System Interface Foundation     download mirror:  [32-bit, 64-bit]   [readme.txt]

  6. Still not working? Update your (UEFI-)Bios: pcsupport.lenovo.com.

  7. Finally some helpful links to Lenovo:
    ThinkVantage Technologies downloads
    Lenovo Windows Support

Please note: This project is not related to the notebook manufacturer Lenovo.


  download  BatteryChargeManager   version 1.0.2

There is no setup procedure - just download and use it, its portable software.

The software does not contain any adware, spyware, malware, virus, trojan or any phone home functionality. Don't hesitate to check the file by webservices like VirusTotal.

By downloading and using this software you accept the follwing terms of use:
This software is provided free of charge. It is not allowed to sell or rent this software.
Pay-wall and ad-referer linking is strictly prohibited.
This software is provided 'as-is', without any express or implied warranty.
In no event will I be held liable for any damages arising from the use of this software.


  screenshots
BatteryChargeManager - main screen   BatteryChargeManager - choose battery

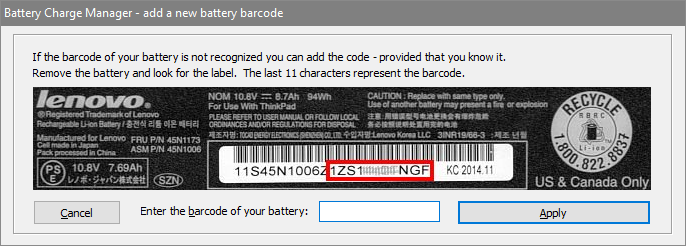

BatteryChargeManager - add a new battery
